MKS | TOTAALOVERZICHT FLEXIBELE METALEN KOELSLANGEN 1/4'' - 3/8'' - 1/2''
- Artikelnr.:
- Zie tabel
- Supplier No.:
- MKS
- Voorraad:
- Zie tabel
- Prijs:
- Zie tabel
Artikelomschrijving
MKS

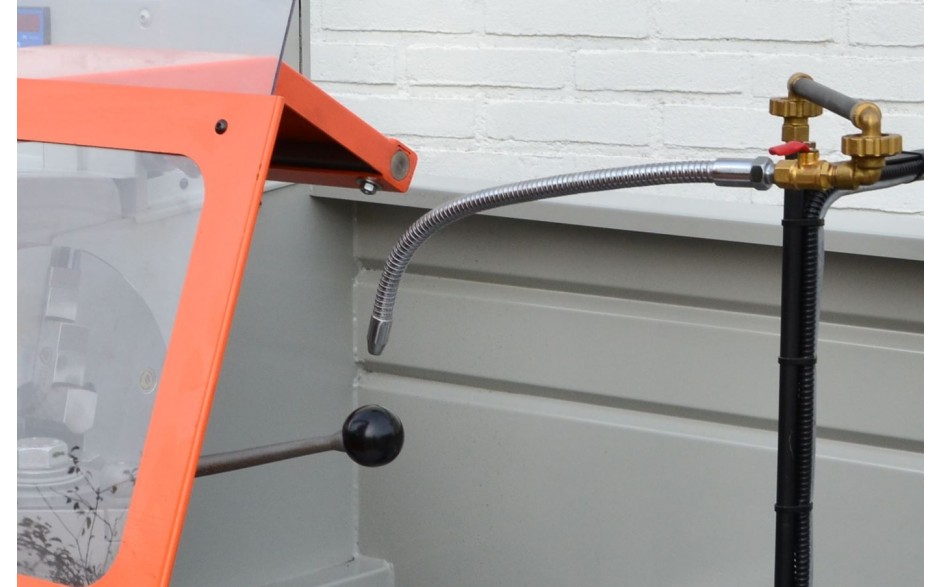

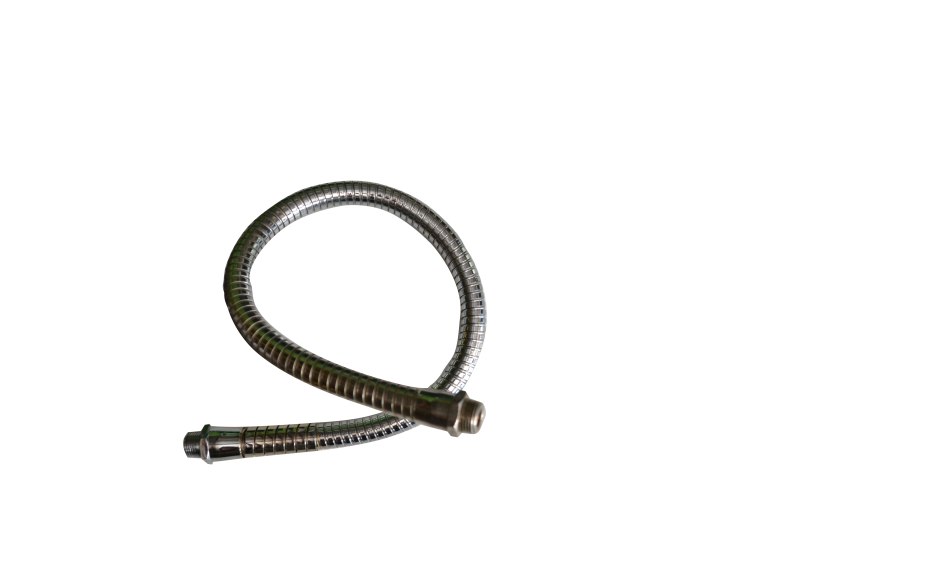

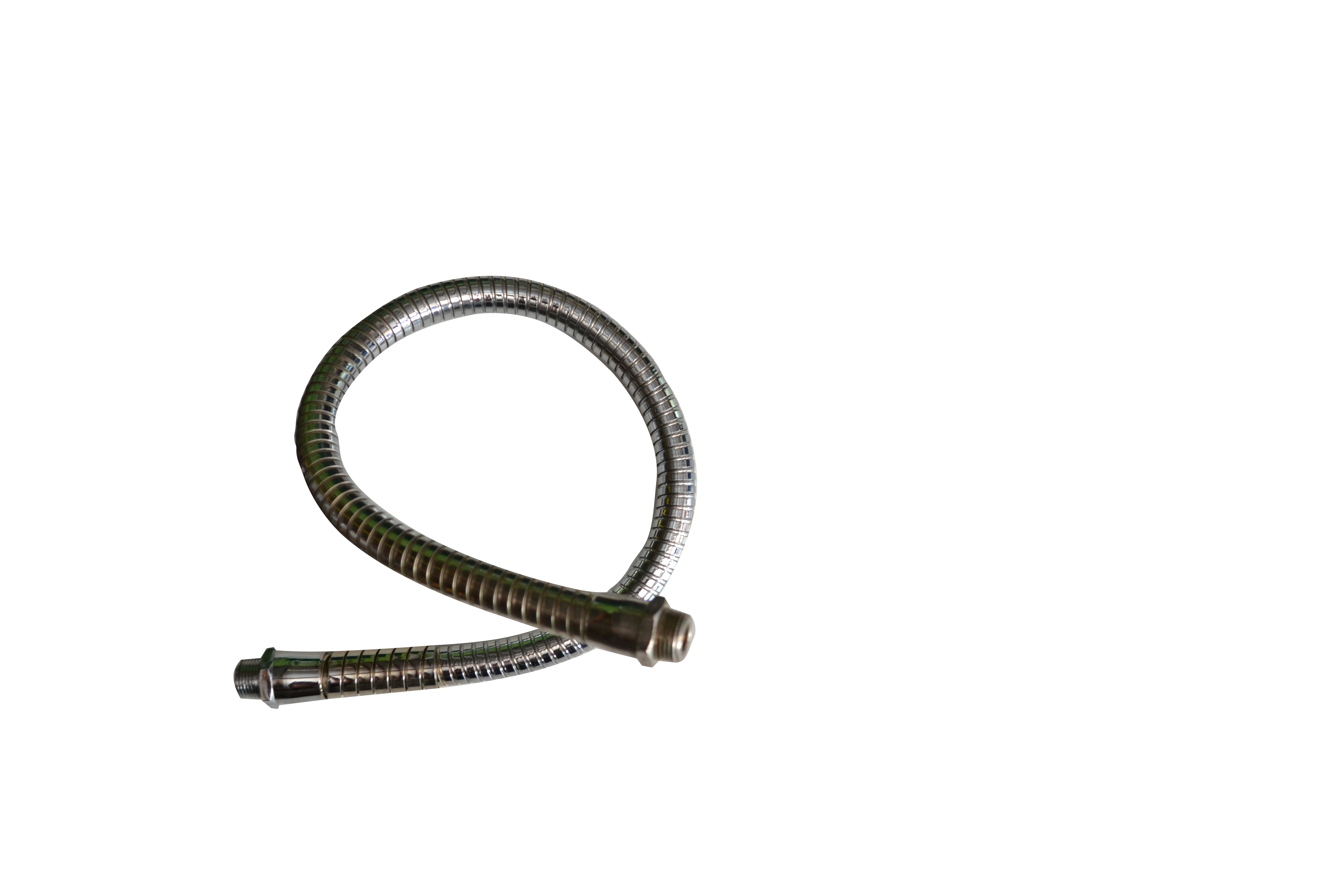

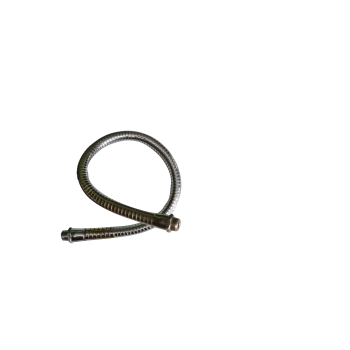

FLEXIBELE METALEN KOELMIDDELSLANGEN
FLEXIBLE METAL COOLANT HOSES
Bestand tegen alle gebruikelijke soorten koelvloeistoffen.
Geen lekkage. Een blijvend exacte positionering is gewaarborgd.
Buitenwerks geheel verchroomd.
Suitable for all coolant fluids. No leaks. We guarantee an exact positioning of the hose at all times. Chrome plated on the outside.
Technische specificaties
uitw. | inw. | totale lengte in mm | |||||||||||||
STD | Code | D | d | A | L | 100 | 150 | 200 | 250 | 300 | 400 | 500 | 600 | 800 | 1000 |
MKS8xL | 8 | 3 | 1/8G | • | • | • | • | • | |||||||
MKS12xL | 12 | 5 | 1/4G | • | • | • | • | • | • | • | • | • | |||
MKS16xL | 16 | 8 | 3/8G | • | • | • | • | • | • | • | • | • | |||
MKS21XL | 21 | 11 | 1/2G | • | • | • | • | • | • | • | • | • |
uitw. | totale lengte in mm | |||||||||||
SPEC | Code | D | A | L | 200 | 250 | 300 | 400 | 500 | 600 | 800 | 1000 |
MKS12xLx12 | 12 | 1/4G | • | • | • | • | • | • | • | • | ||
MKS16xLx16 | 16 | 3/8G | • | • | • | • | • | • | • | • | ||
MKS21XLx21 | 21 | 1/2G | • | • | • | • | • | • | • | • |
Gasdraad Afmeting:
Diameter in mm gemeten aan:
Buitenzijde Binnenzijde
1/8” 9,728 8,566
1/4” 13,157 11,445
3/8” 16,662 14,950
1/2” 20,955 18,63
15/8” 22,911 20,587
3/4” 26,441 24,117
1” 33,249 30,291
1.1/4” 41,910 38,952
1.1/2” 47,803 44,845
2” 59,614 56,656
2.1/2 75,184 72,226
3 87,884 84,926
