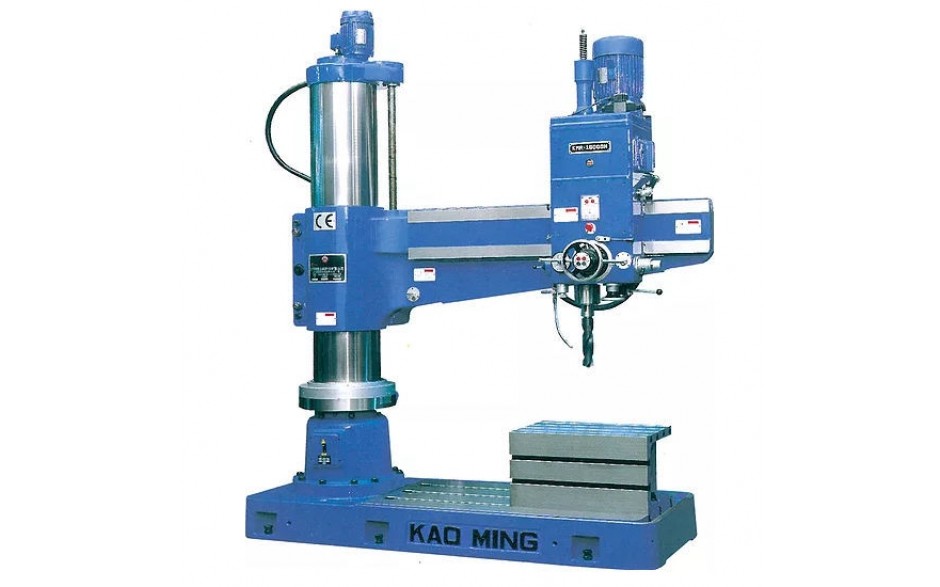

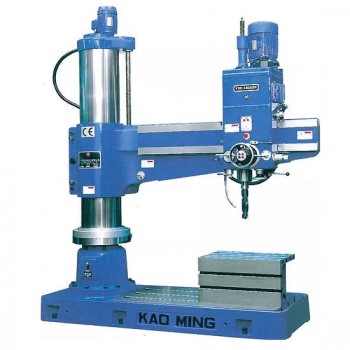

Radial Drilling Machine KMR50x1600DH w/Standard accessories as catalogues listed Distance from spindle center to column center (max/min) 1795/565mm Distance from spindle center to column surface (max/min) 1600/370mm Distance from spindle nose to table top (max/min) 1570/435mm Column diameter 390mm Column height 2991mm Machine height 3341mm Machine base 2400*950mm Floor space 2735*1250mm Spindle head horizontal move distance 1230mm Arm up and down move distance 835mm Spindle diameter 105/69mm Spindle tapr (M.T.) NO.5 Spindle drive motor 7.5HP Spindle feed rate 0.06-1.12mm Spindle drilling capacity (FC20/S45C) 66/56 Spindle boring capacity (FC20/S45C) 186/126 Spindle tapping capacity (FC20/S45C) 60/50 Machine net weight 4790KG
