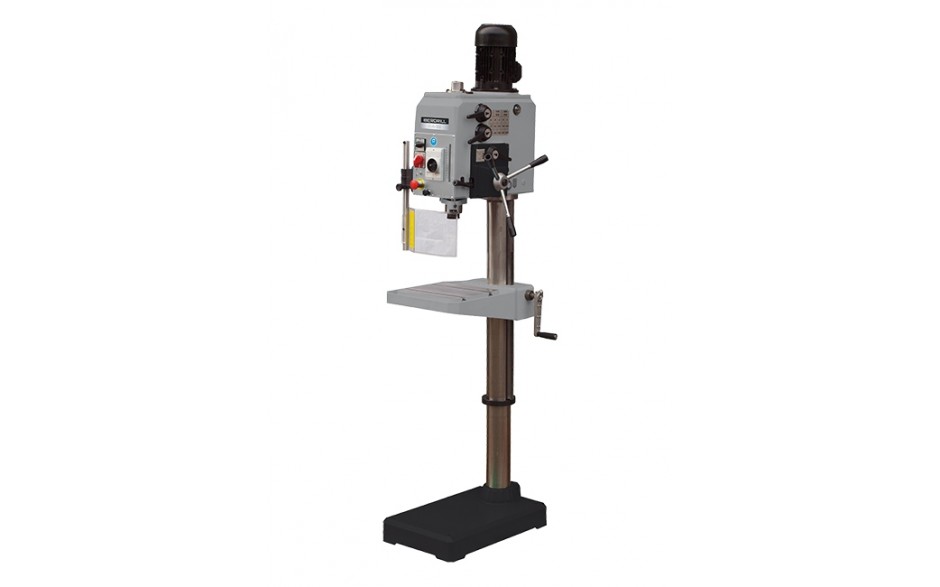

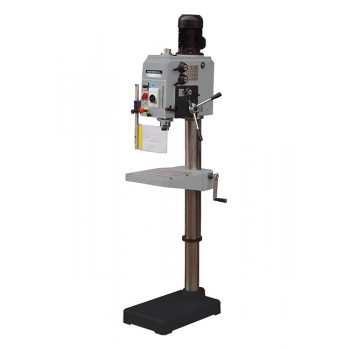

IXA 32 series

Drill of round column mechanical automatic feed

• Feed mechanical automatic
• Feed: (2) 0,10-0,20
• Transmission gears
• Column diameter: 100 mm
• Distance from spindle to column: 250 mm
• Moveable table and fixed bit
• Drilling capacity: ⌀ 32 mm
• Tapping capacity: M 24
• Spindle cone: CM 3
• Engine power: 2.5/3.5 HP
• Num. and selections of speeds: (8) 65 – 3060 rpm
• Drilling depth: 120 mm
• Weight: 260 kg
• Measurements: 600x380x2020 mm
