832110 SASSATELLI meedraaiend center MK-3 [ GT-E serie ]
- Voorraadstatus
- Op voorraad
- Prijs:
-
€ 209,00 (Excl. BTW)
Artikelomschrijving

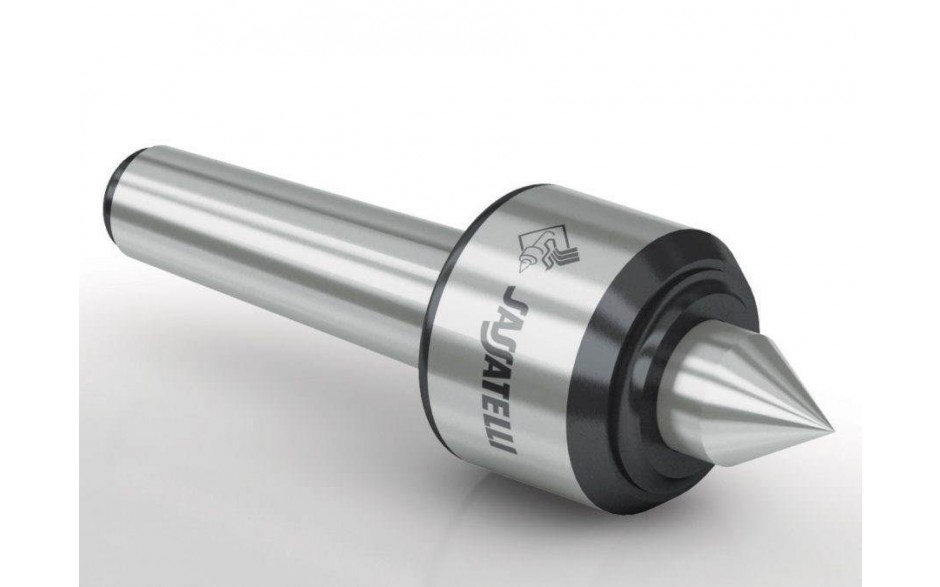

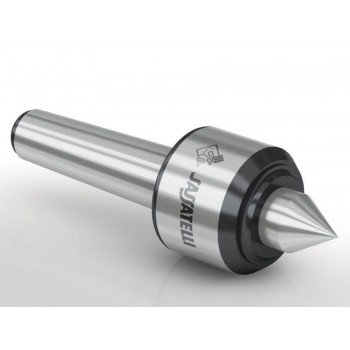

832110 SASSATELLI meedraaiend center MK-3 [ GT-E serie ]

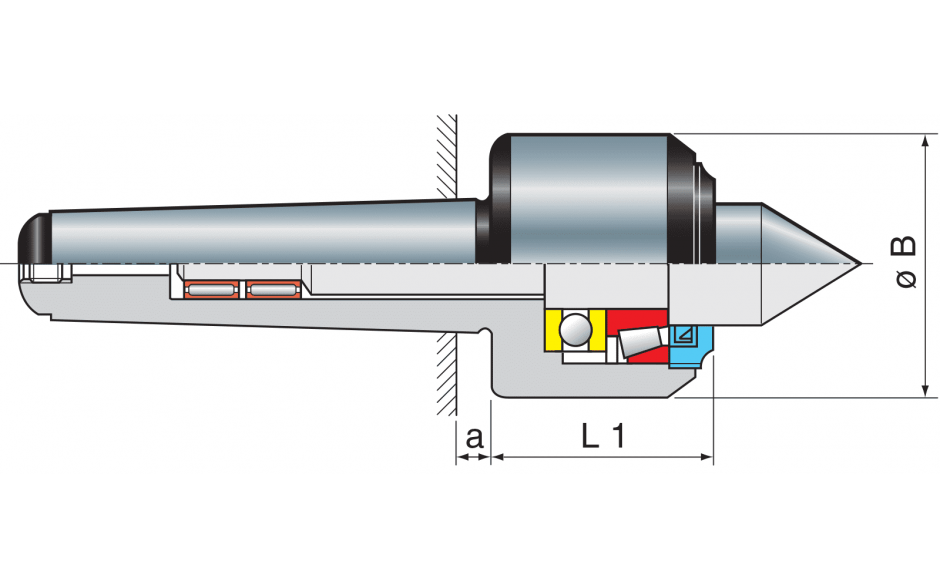

Shaped tailstock with bearings, recommended for lathes with medium-load machinings and not high speeds. Hardened and rectified body and shaft, permanently lubricated.
Technische specificaties
CM | 1 | 2 | 3 | 4 | 5 | 6 |
---|---|---|---|---|---|---|
kg | 0,5 | 0,9 | 1 | 1,6 | 3,5 | 8 |
rpm | 8500 | 6000 | 5000 | 4000 | 3000 | 2500 |
≤ | 0,008 | 0,008 | 0,008 | 0,008 | 0,008 | 0,01 |
mm | 3,5 | 5 | 5 | 6,5 | 6,5 | 8 |
mm | 38 | 48 | 55 | 61 | 80 | 94 |
mm | 37 | 42 | 43 | 51 | 55 | 68 |
