SPV18 | KOELMIDDELPOMP EMU56B 400V 170MM
- Artikelnr.:
- 1100003619
- Supplier No.:
- SPV18-170-400V / 12181704000
- Fabrikant:
-
- Voorraadstatus
- Op aanvraag
- Prijs:
- Price on Request
Artikelomschrijving

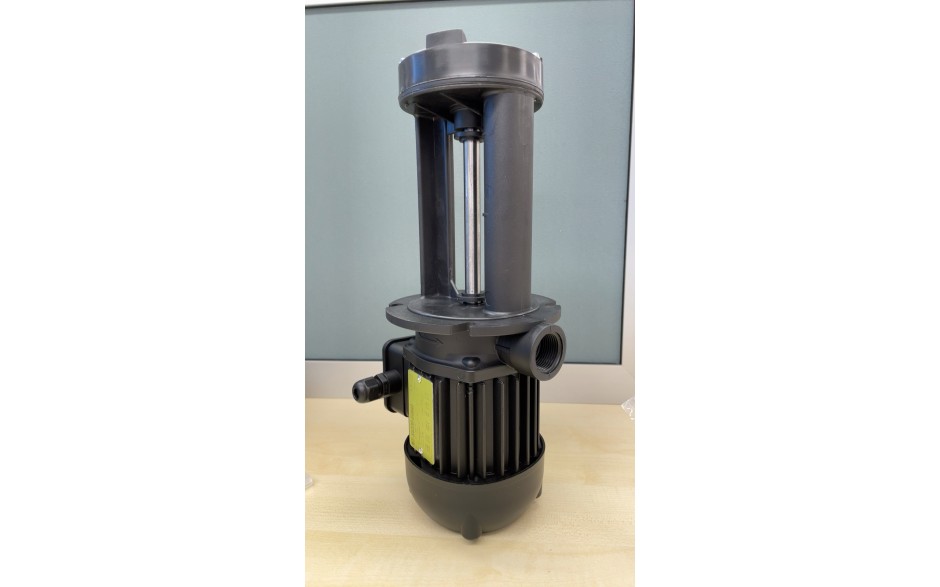

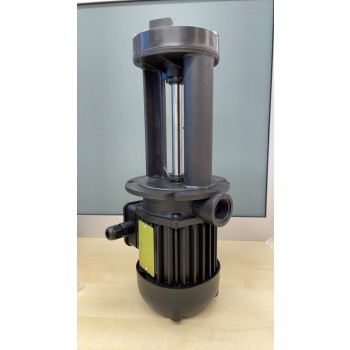

SPV18-170-400V | KOELMIDDELPOMP EMU56B - 170MM INSTEEKDIEPTE 3/4G 400V 42ltr/min 2m
• Flensdiameter Ø130mm
• Steek van de sleufgaten 80x80mm.
• insteekdiepte 170mm
• Aansluiting 400V-3Ph
Technische specificaties
SPV 12-18
They are suitable for transferring liquids containing impurities up to 3 mm in size.
Their hydraulic components: impeller, feed screw and pump body in PBT allow them to be used with water, emulsions and oily substances in general, with a viscosity not exceeding 21c St (3° Engel).
The temperature of the liquid must not exceed 70°C.
They are commonly used on:
- machine tools (milling and turning machines-drills)
- glass processing machinery (TRI version)
- printing machines
They are normally installed on a tank with a capacity which is proportional to their flow rate, about 3-4 cm from the bottom.
It is important to make sure that the maximum liquid level in the tank is always 3-4 cm lower than the support flange.
Should the liquid be particularly dirty, it is advisable to build a compartment tank in order to allow the sludge to deposit before it is sucked by the pump.
