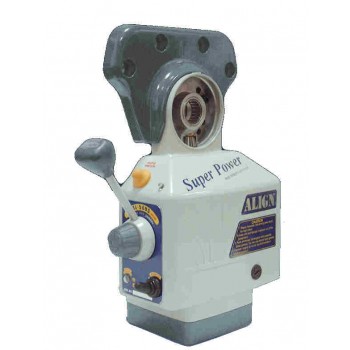

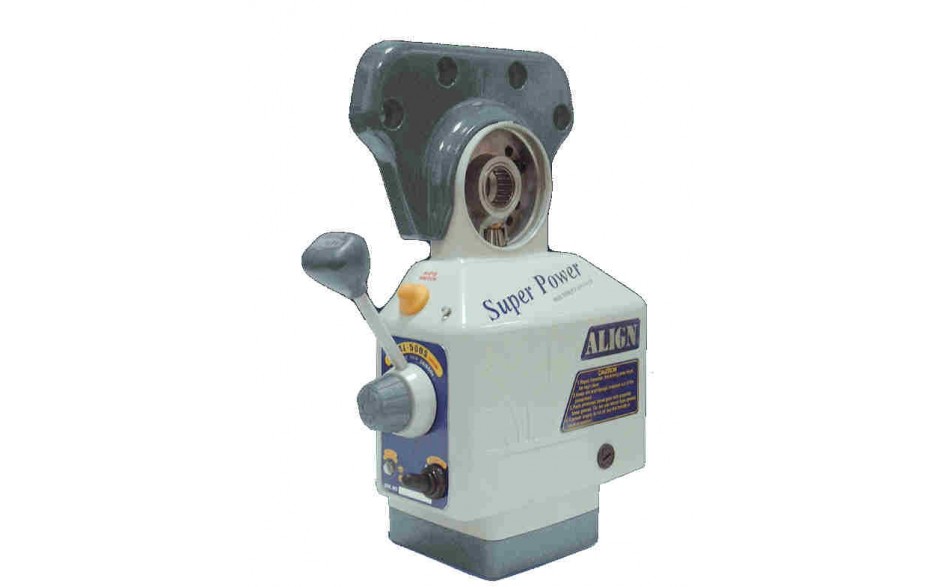

CAL250Z | ALIGN AUTOMATISCHE FREESTAFEL HOOGTEVERPLAATS-UNIT CE (Z-AS) 110V [ORIG.NR.AL-500S-C]
- Artikelnr.:
- 11000000461
- Supplier No.:
- AL-500S-C / 12113132503
- Fabrikant:
-
- Voorraadstatus
- Op aanvraag
- Prijs:
- Price on Request
Artikelomschrijving
CAL250
ELECTRONISCHE TAFEL-VOEDINGS UNIT SUPER POWER
Proffesionele voedings unit voor freesmachines. Zeer eenvoudig te installeren. Voorzien van ijlgang en automatische slipkoppeling bij overbelasting van de voedings unit. Er zijn 3 uitvoeringen leverbaar, n.l. langs-voeding, dwars-voeding en knie-voeding. Alle units worden geleverd met thermische beveiliging en montage materialen. Volgens CE micro-schakelaar afslag via 24V DC systeem.
ELECTRONIC POWER TABLE FEED SUPER POWER
Power table feed for milling machines. Easy to install. When power feed is working and ecepting tremendous obstacle, the easy-gear clutch will automatically disconected in order to reduce damage. 3 types power feeds are available, which are suitable for longtidunal, vertical and cross feeds. All types are equipped with thermal protection switch and mounting accessories.
Technische specificaties
CAL250X | CAL250Y | CAL250Z | |
AL500S-A | AL500S-B | AL500S-C | |
Ijlgang / Rapid speed | 200 | 200 | 200 |
Toerental omw/min / Speed | 4-160 | 4-160 | 4-160 |
Voeding / For feeds | langs/Longitudinal | Dwars/Cross | Knie/Knee lift |
Moment / Torque Nm | 14 | 14 | 14 |
Voedings-spanning / Power | 110VAC | 110VAC | 110VAC |
Gewicht kg. / Weight | 6 | 6 | 6 |
